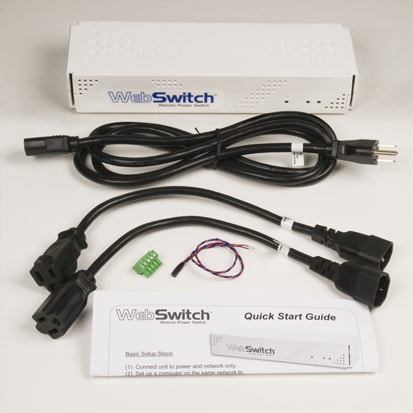

Rangecast WebSwitch Plus

Power Requirements

• Voltage: 100-240V AC (47-63Hz)
• Input Frequency: 47-63Hz
• Input Connector: IEC 320 Appliance Connector (C14 Male)
• Max Current: 10A (DO NOT USE WEBSWITCH TO CONTROL MORE THAN 10 AMPS - BOTH OUTLETS)*

Relay Contacts

• Number of Relays: 2
• Relay Connector: IEC C13 Female
• Contact Type: SPDT (Form 1C)
• Load Type: General Purpose
• Contact Resistance: < 30 milliohms initial
• Contact Material: AgSnO2
• Electrical Life: 100K cycles (Typical)
• Mechanical Life: 10M cycles (Typical)
• Environmental Rating: Overvoltage Category II, Pollution Degree 2
• Relay Modes: ON/OFF or Pulse/Reboot
• Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)

Digital Inputs

• Number of Inputs: 2
• Type: Non-Isolated
• Voltage Range: 0-5VDC
• Current: 47K Pullup
• Minimum Hold Time: 20ms
• Input Isolation: Non-Isolated
• Input Functions: Emails Alerts, SNMP Traps

Temperature Sensors

• Maximum Number of Sensors: 3
• Type: Dallas Semiconductor DS18B20
• Temperature Range: -67°F to 257°F (-55°C to +125°C)
• Accuracy: ±0.5°C (from -10°C to +85°C)
• Sensor Functions: Monitor Temperature, Log Temperature, Email Alerts, SNMP Traps
• Humidity Type: Xytronix Model X-DTHS-WM wall mount sensor
• Humidity Range: 0-100% RH
• Accuracy: ±1.8%

Real-Time Clock:

• Manual or NTP(Network Time Protocol) setup
• NTP Sync Period: Once, Daily, Weekly, On Powerup
• Auto Daylight Savings Adjustment
• Battery (capacitor) Power Backup

Capacitor Power Backup

• Backup Functions: Retain Real-Time Clock, External Variables, Outlet State.
• Backup Duration: 3 days minimum

Network

• Type: 10/100 Base-T Ethernet Port
• Setup: Static IP address assignment or DHCP, HTTP port selectable (WebSwitch Plus ONLY)

Connectors

• Output Connectors: IEC 320 Appliance Connector (C13 Female)
• Network: 8-pin RJ-45

LED Indicators

• Number of LEDs: 5
• Power on
• Out On 1-2
• Network linked
• Network activity

Physical
Operating Temperature: -4°F to 104°F (-20°C to 40°C)

Size:
10.65 inches (27.11 cm) wide
1.75 inches (4.44 cm) tall
3.29 inches (8.36 cm) deep
Weight: 1 lb. 3 oz. (542 grams)
Enclosure Material: Lexan 940 Polycarbonate Plastic
Enclosure Flame Rating: UL94 V0

Protocols
HTTP, XML, Modbus TCP/IP, SNMP, Remote Services

Logging
Log File Size: 512K (Max 17272 logs)
Storage: Nonvolatile Flash
Buffer Architecture: Circular Buffer

Log data can be periodically read and stored on a computer

Password Settings
Password protection on setup page: Yes
Password protection on control page: Optional
Password Encoding: Base 64
Password Length: 13 Characters

Electromagnetic Compliance
IEC CISPR 22, CISPR 24
FCC 47CFR15
EU EN55024, EN55022
EN55022:2006: Class B
EN61000-3-2
EN61000-3-3
EN55024:2006
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
ITE-Class B

Product Safety Compliance
CAN/CSA-C22.2 No.60950-1-03 First Edition
UL 60950-1 First Edition
