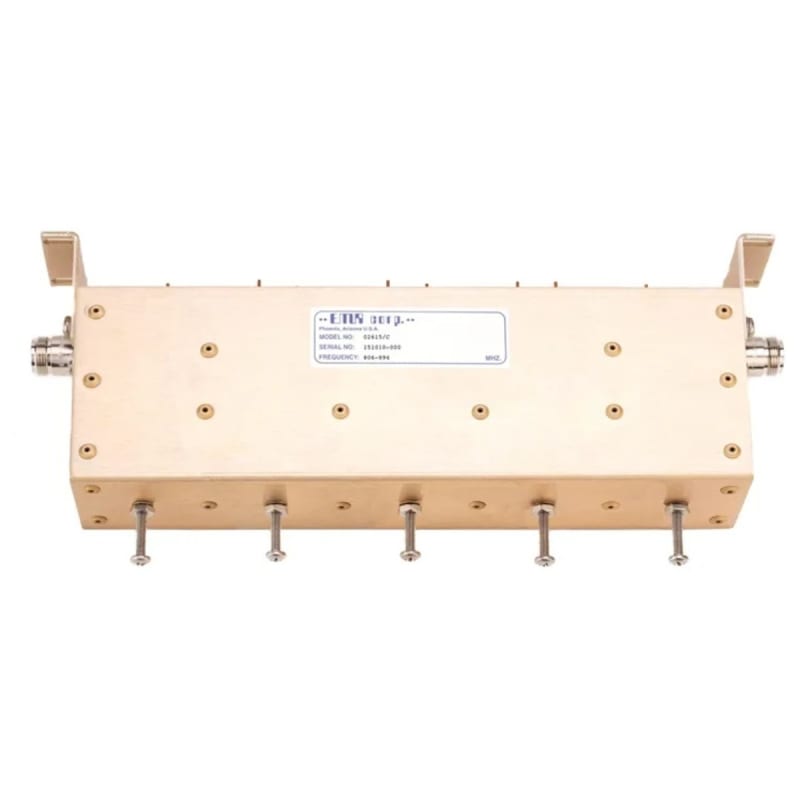

EMR Band pass filter
EMR Band pass filter

Our Price: $695.00
Sale Price: $625.50
You Save: $69.50

Stock Status: In Stock

Product Code: 20-551879

EMR Corp RF Preselectors vary from single or dual cavity resonator combinations, to mult-stage inductive, aperature coupled, or combline filters. Special preselector assemblies may include one or more of these devices in combination, multiple pass and stop band characteristics, and special notch elements according to the complexity of site requrements. EMR preselectors are designed to optimize loss, selectivity, and costs; with respect to the particular site requirements and frequencies.

Covers the Entire 806-894 MHz Band
2.0 db Typical Insertion Loss
40 dB Attenuation 20 MHz away from center frequency


  • Frequency Range: 806-894 MHz
  • Pwr (Input/Refi): (Input) Rx Application Only
  • Insertion Loss: 2.0 dB (Typ.)
  • Actual Dimensions (Inches/Metric): 2" x 11.5" x 5" (51 x 292 x 127 mm)
  • Shipping Weight (lbs/kg): 4 lbs. (1.8 kg)
  • Impedance: 50 Ω
  • VSWR: 1.2:1
  • Temp Range: -20 to +50 C
