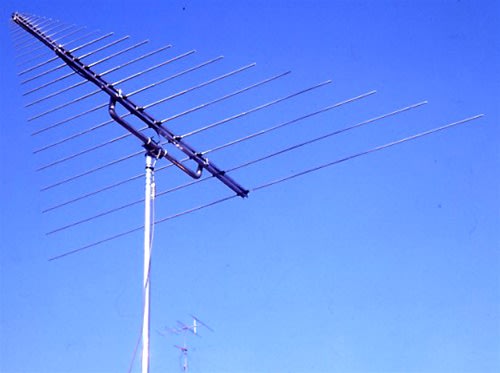

CLP-5130-1N Log Periodic Antenna
CLP-5130-1N Log Periodic Antenna



List Price: $519.95
Our Price: $519.95


Product Code: 40-541274
Qty:

Basics

Wideband log periodic receive/transmit antenna.

2:1 or less SWR: 50-1300MHz
Elements: 21
Polarization: Horizontal
Gain: 10-12dBi
F/B ratio: 15dB
Half power point: 70-60 degree
Max power: 500 watts
Boom length: 6ft 8 inches
Max element length: 9 ft 10 inches
Weight: 11 lbs
Connector: N-connector
Construction: Aluminum
Max wind speed: 90MPH
CD MODEL CLP5130-1 is a high gain, wide band VHF and UHF log periodic type beam antenna. As a standard, the antenna is designed for horizontally polarized base station use but by means of an adapter, vertical polarization is also possible. The antenna is usable in the amateur bands from 50 through 1300 MHz and is also suitable for FM boadcasting, scanning, VHF/UHF television air band communications, government applications, and business band use.

Forward gain of the CLP5130-1 from 50 to 1300 MHz is 10 to 12 dBi (this is 10 to 16 times the gain compared to a nondirectional discone type antenna). The VSWR of the antenna is less than 2.0:1 across the band. Mechanically, the log periodic uses a specially shaped high quality aluminum boom that allows for movement of the phasing line. In addition, distortions in the vertical and horizontal planes have been minimized, and adjustment of the element alignment is not necessary. The assembly of the antenna is easy. The boom to mask bracket is made of lightweight and rugged magnesium alloy.

The FG8246 requires one of the following Coax Cables to connect from the antenna to the scanner. Choose your desired length from the options below.

LMR-400 Coax Cable, 25', N Male to BNC Male
LMR-400 Coax Cable, 50', N Male to BNC Male
LMR-400 Coax Cable, 75', N Male to BNC Male
LMR-400 Coax Cable, 100', N Male to BNC Male
